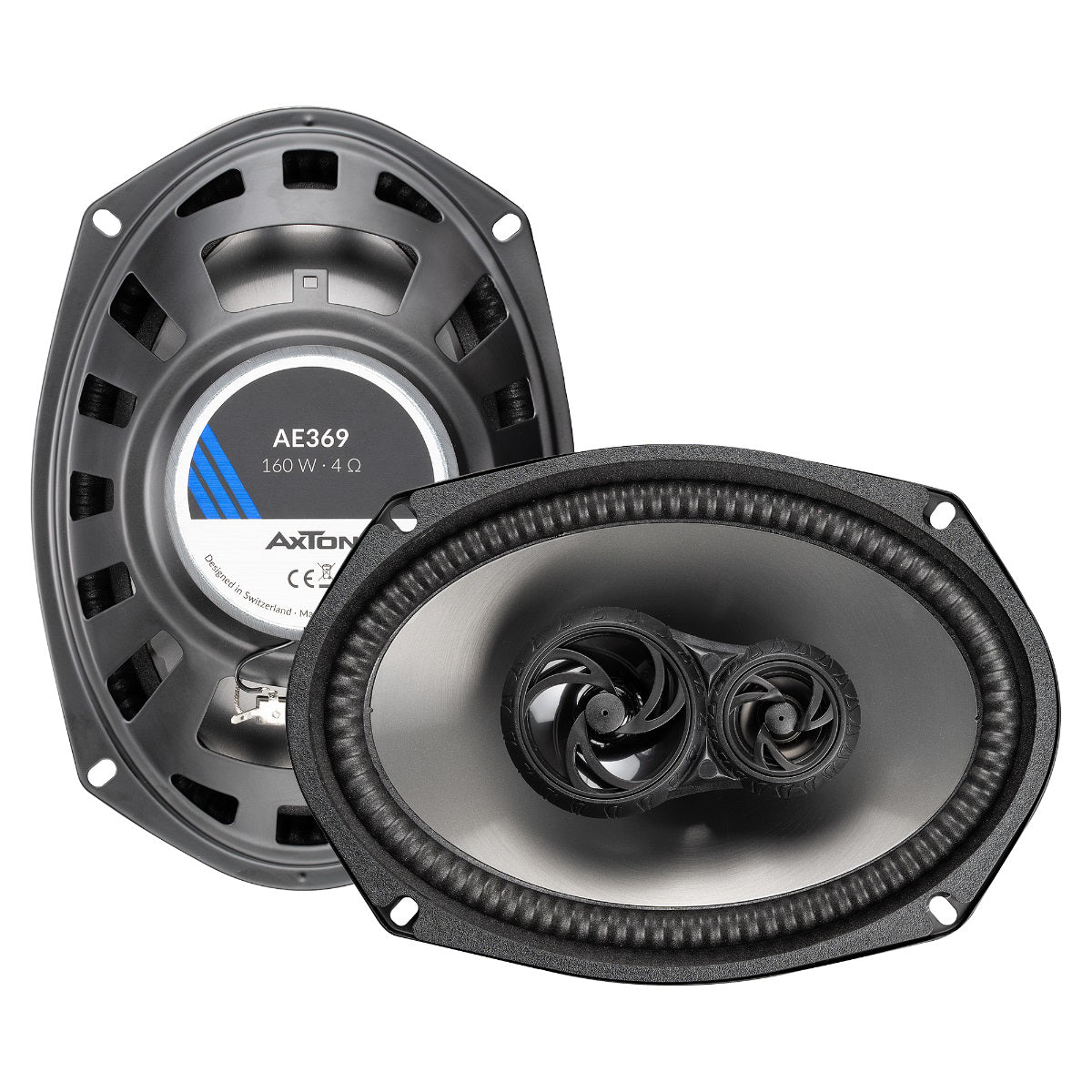

AXTON, AE369 15 x 23 cm/6 x 9" coax

AXTON, AE369 15 x 23 cm/6 x 9" 2-way coaxial system 80W RMS

Although designed with a budget in mind, our AE coax systems offer the renowned AXTON quality in performance and sound. All 2-band coax systems feature robust Euro-DIN clamps and fit into the original mounting holes of most vehicles, especially thanks to the properly sized strontium ferrite magnets at low/mid-range frequencies. The mid-range drivers feature lightweight, low-resonance injection-molded polypropylene diaphragms that provide high rigidity, high internal damping, and accurate reproduction across the entire frequency range. Added to this is a lightweight foam surround, which results in an even faster impulse response and an even lower mass transfer than usual with other materials. Our coaxials feature a very compact 13mm neodymium tweeter with a mylar dome that guarantees lively, differentiated high frequency reproduction.

< span class="HwtZe" lang="lt">Accents:

• 15 x 23 cm/6 x 9"  2-band coaxial system
• Compact crepe design in lacquered steel Euro-DIN format
• Powerful Strontium Ferrite Magnet Lightweight polypropylene membrane
• Polyurethane foam trim
• 13mm mylar dome with ferrofluid heated neodymium magnet
• LS grille


Technical data:

• Reproducible frequency range 60Hz - 20 kHz
• Nominal power RMS: 160 W
• Resistance 4 ohms
• Sensitivity: (1W/1m) 87 dB
• Installation diameter: 15 x 23 cm/6 x 9"
• Installation depth: 72 mm
